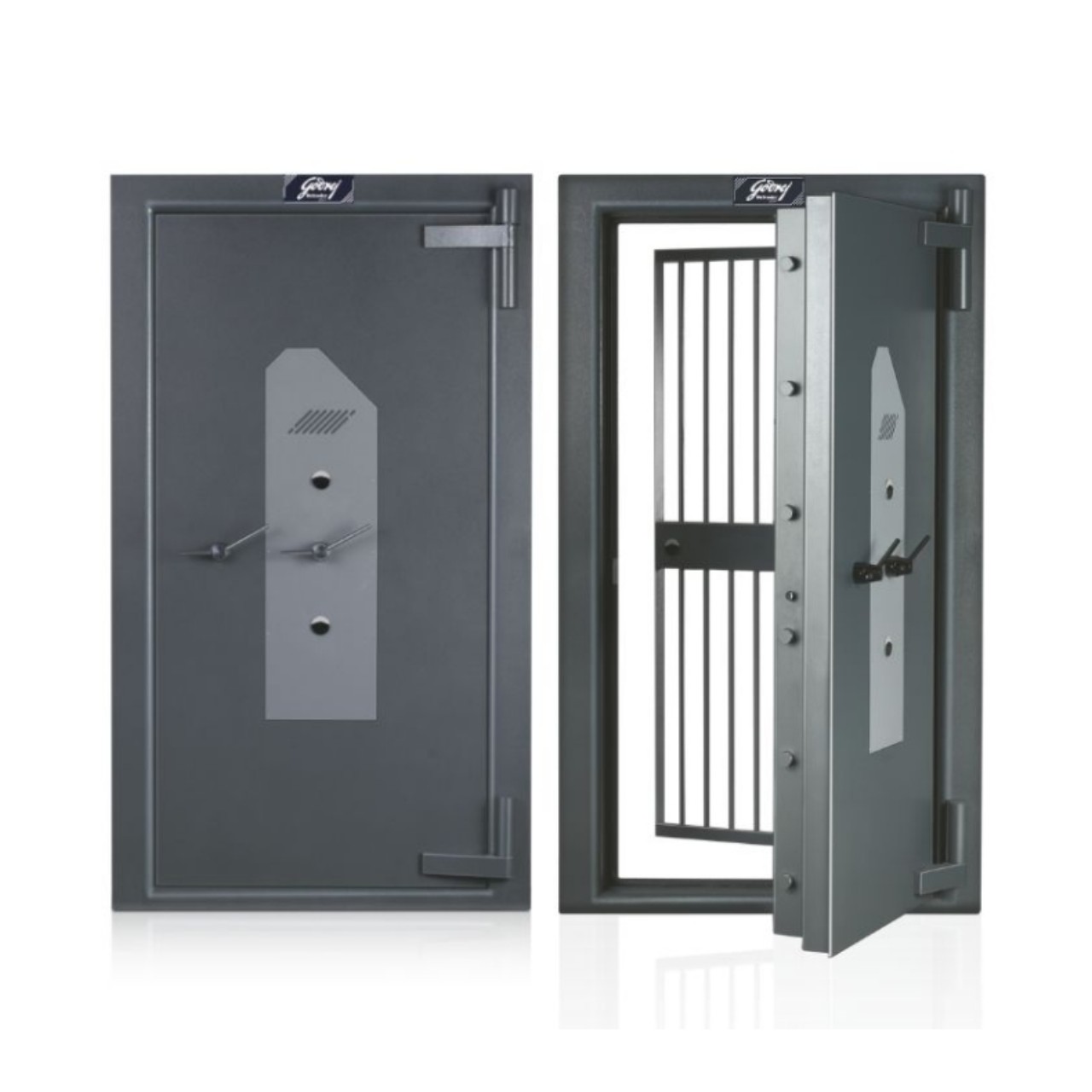

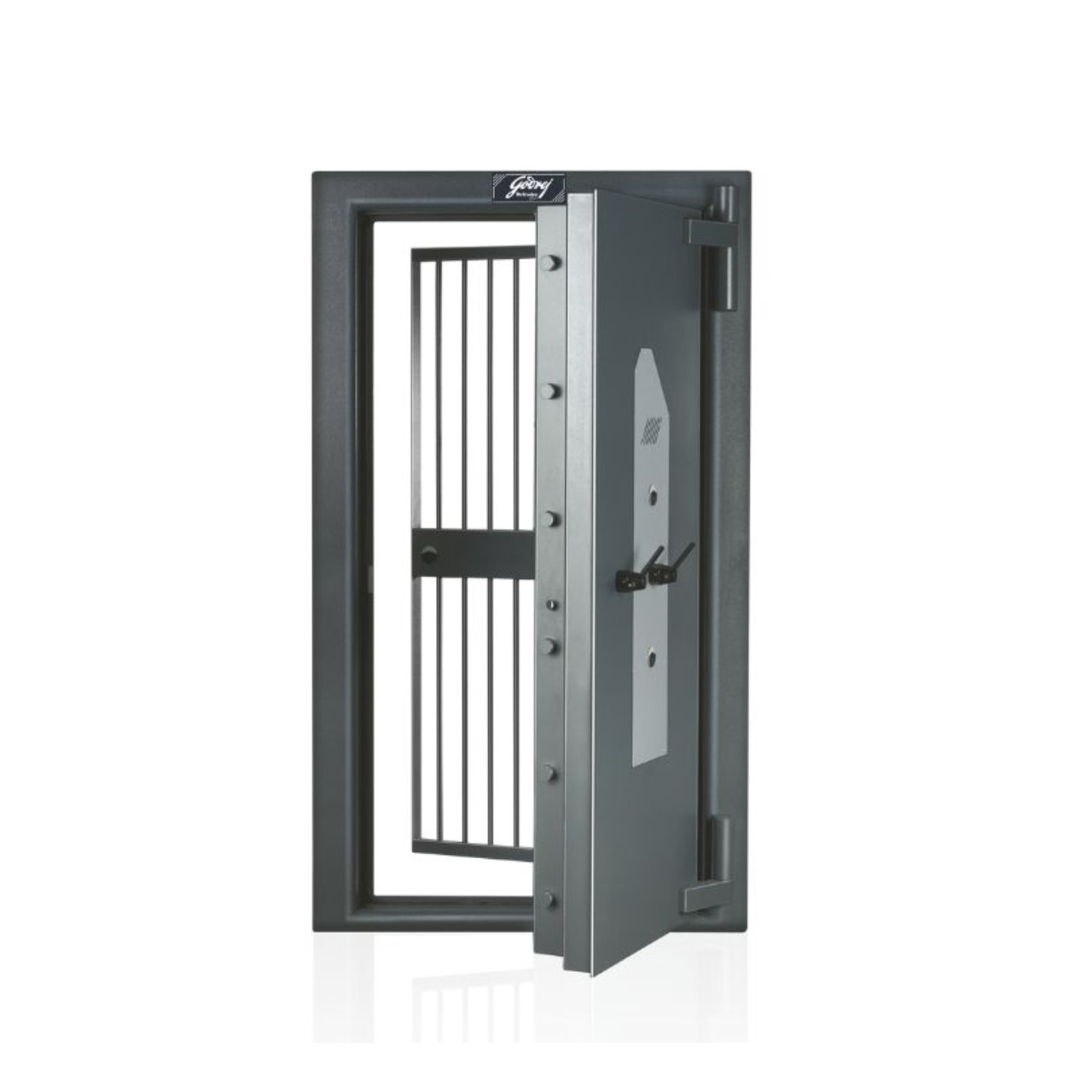

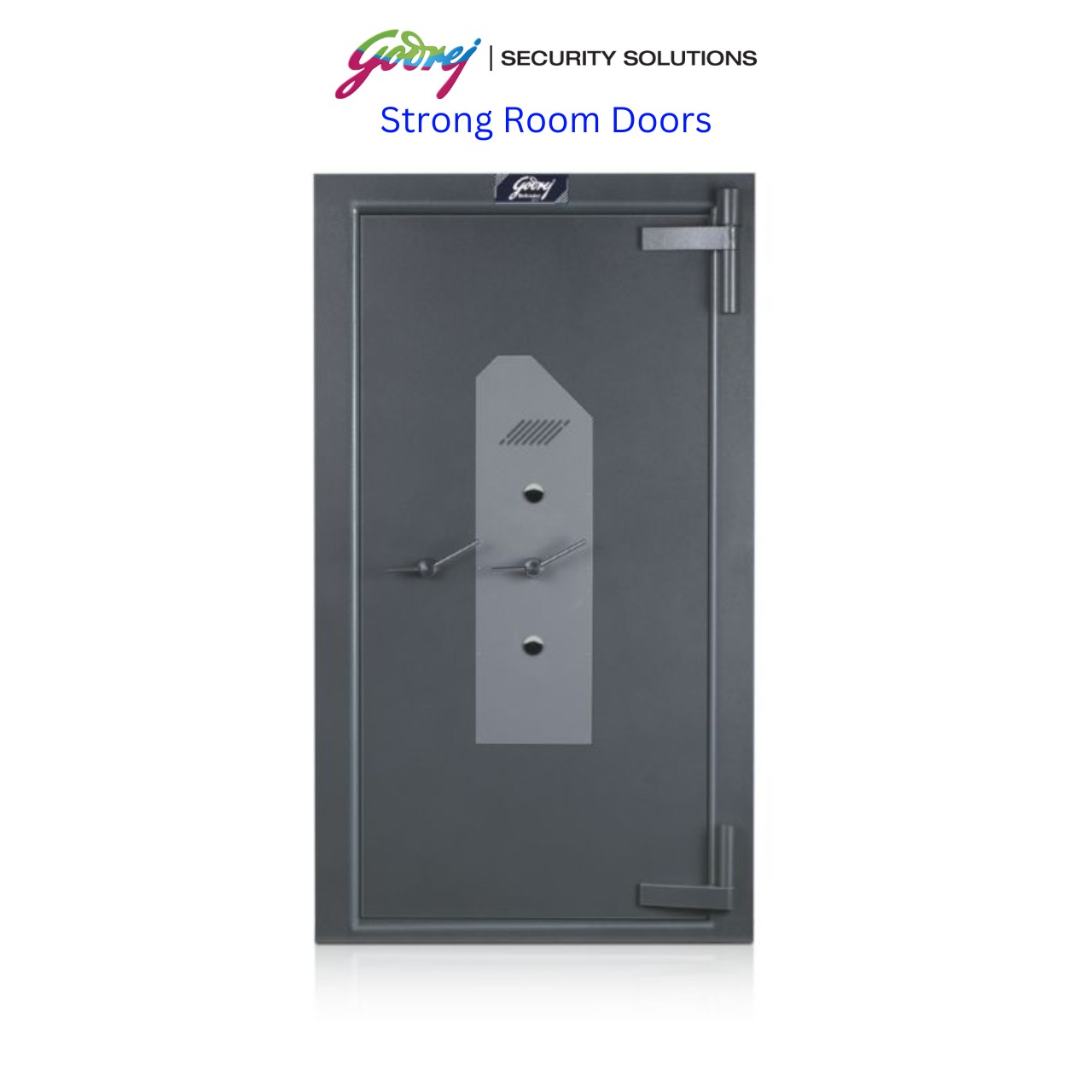

Strong Room Doors

0.00

The Steelage range of strong room doors and vault doors are specially designed to protect high-security installations like strong rooms and currency chests. It offers certified protection against torch and tool attacks and is certified as per the Bureaus of Indian standard IS 11188.

Description

Overview :

With break-in attacks getting more and more sophisticated by the day, it is crucial for bank and high volume businesses to put in stringent security measures. Godrej Security Solutions has hence created state-of-the-art Strong Room Doors to provide protection against criminal activity. The doors are made with double duty barrier material and torch and drill matrix to provide superior resistance against attacks by drill machines, oxyacetylene torches and more. The doors come fitted with two dual control high precision locks, as well as automatic relocking deadlocks. The Strong Room Doors are especially created for banks, financial institutions, jewellers and other high turnover businesses.

Feature :

  1. Unique two-step door construction
  2. Double duty barrier to provide reliable protection against fire
  3. 12 shooting bolts, 38mm diameter each provided in front and rear to secure the door
  4. Balanced pressure bolt to protect against dislodging attempt by creating equal neutralizing pressure from within

Specification :

Classification TRTL (Torch and Tool Resistant)
Class C TRTL 15, FR 30
Class B TRTL 30, FR 30

  •
Specification Nomenclature Class – C Class – B
Overall size (cm) h * w 212.8 * 122 212.8 * 122
Clear opening (cm) h * w 195.3 * 91 195.3 * 91
Thickness of door with lock case (cm) T 16.2 18.2
Overall door thickness frame & grille gate (cm) OT 30 30
Recommended for wall thickness (cm) WT 30.5 – 38 30.5 – 38
Door swing (cm) B 106 106
Grille gate swing (cm) C 98.5 98.5
Projection of door when opened at 90″ (cm) D 108 108
Projection of door when opened at 180″ (cm) E 26.5 26.5
Overall width of door and frame for max clear opeining (cm) F 185 185.6
Overall width of door and frame when fully opened (cm) G 220.5 222
Approx. weight (kg)   860 965
